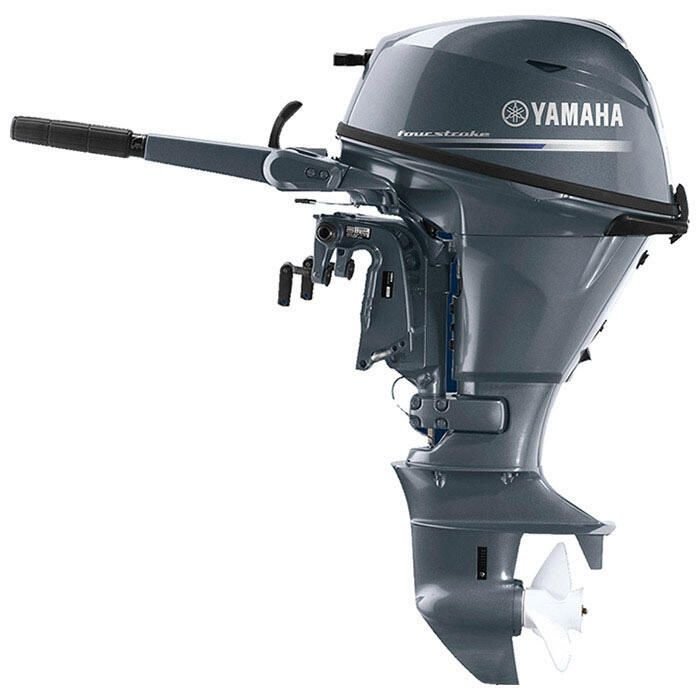

2023 Yamaha 25 HP 20” Shaft Tiller Outboard Motor

Features:

• CDI Microcomputer
• Wet Sump Lubrication
• Engine Warning System
• Mechanical Single Throttle Valve Intake System
• SST Drive, Prop, Shift Shafts
• SST Steering Tube
• Magnetic Drain Plug
• Sacrificial Anodes
• YDC-30 Aluminum Alloy
• Phaze Five™ Paint System
• Electro-deposited Powerhead Paint Process
• New Light-weight, Compact, Powerful Design
• Single Overhead Camshaft
• Battery-less Electronic Fuel Injection
• Wide-Span Mounting System
• High-Output (16A) Alternator
• Electric and Pull-Start Available Together (some models)
• Retrofit Electric Start Available
• 45-Degree Steering in both Directions
• Built-In Resting Pads and Carry Handles
• Variable Trolling RPM Switch (VTSTM )
• Power Trim & Tilt (LWTC model)
• Freshwater Flush
• Spin-on Oil Filter
• Offset Steering Friction Lever
• Auto Decompression Device
• Vibration Reduction Mounting System
• C.A.R.B. Ultra Low Emissions 3 Star Rating
• Meets All Current Federal EPA Emission Standards
• External Oil Drain Plug

Specifications:

• Engine Type: Two-Cylinder, In-line
• Displacement: 432 cc
• Bore & Stroke: 5 x 65.1 mm (2.554 x 2.558″)
• Rpm Range: 5000-6000
• Compression Ratio: 9.3:1
• Induction System: SOHC, 2 valves per cylinder
• Alternator Output: 16A
• Fuel Delivery: Battery less EFI
• Starting: rope or electric
• Ignition: CDI Microcomputer
• Lubrication: Wet sump
• Degree of tilt (power trim and tilt):
  • -3° through +16° (PTT)
  • 3° through +63° (PTT)
• Degree of tilt (manual tilt):
  • 4 positions (manual tilt)
  • -4 through +62° (manual tilt)
• Exhaust: Through Propeller
• Cooling: Water/Thermostatic Control
• Gear Shift: F/N/R
• Gear Ratio: 27:13 / 2.08:1
• Recommended Fuel: Regular Unleaded (Minimum Pump Octane 87)
• Recommended Oil: Yamalube® 4-M 10w-30
• Shaft Length: 15″ or 20″
• Dry Weight: 57-67 kg (126-147 lbs)
• Standard Propeller: 3-Blade Aluminum (9 7/8″ x 11 1/4″)
• Fuel Line Included
• Factory Warranty: 3 years. Warranty begins on date of purchase.

Note: External fuel tank not included.
